目录

1.案例要求

2.思路和操作

1.Block工具，格式转换

2.匹配所有胶囊，不包括空胶囊

3.使用颜色识别工具

4.编写脚本进行遍历

完整脚本代码：

3.最终实现效果

1.案例要求

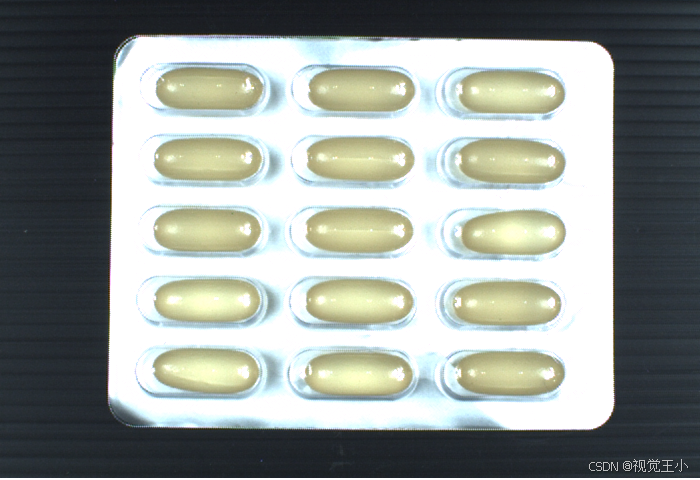

测量出每一版胶囊是否合格，不合格的话缺陷是什么都标注出来，下面这张图片是合格胶囊的示例。

2.思路和操作

1.Block工具，格式转换

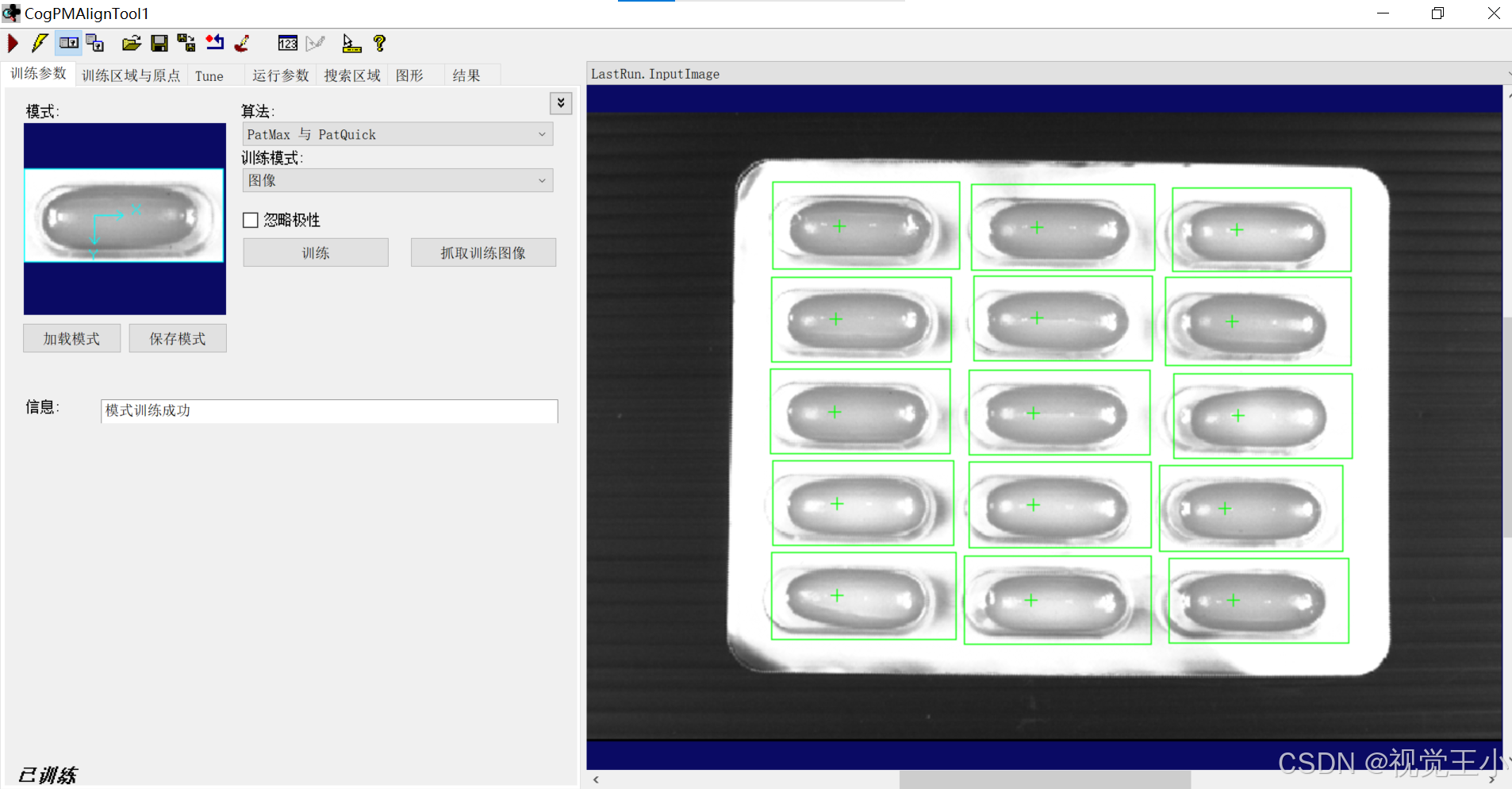

2.匹配所有胶囊，不包括空胶囊

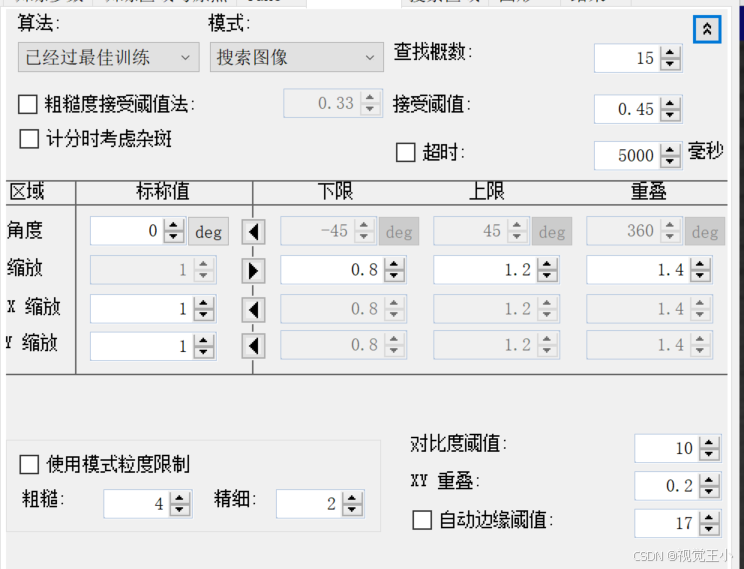

这里适当调整参数以便更好地匹配到非空胶囊

3.使用颜色识别工具

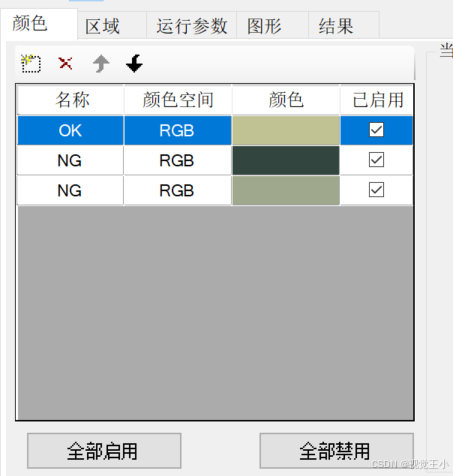

这两种不合格的产品我们可以通过颜色识别跟正常的胶囊区分开

4.编写脚本进行遍历

CogGraphicCollection col = new CogGraphicCollection();//图形工具存放内容
CogGraphicLabel label = new CogGraphicLabel();//输出总的胶囊是否合格
CogGraphicLabel[] labels = new CogGraphicLabel[15];//输出单个胶囊是否合格

col.Clear();//清除内容，防止内容留存输出到别的图片

//加载组件对象

CogPMAlignTool p1 = mToolBlock.Tools["CogPMAlignTool1"] as CogPMAlignTool;
CogColorMatchTool cm = mToolBlock.Tools["CogColorMatchTool1"] as CogColorMatchTool;

int count = p1.Results.Count;//识别出胶囊的数量
int count_ng = 0,count_ok=0;//count_ng表示缺陷数量，count_ok表示合格数量

//遍历每一个保险器件

for(int i = 0;i < count;i++)
{
  CogCircle c1 = new CogCircle();
  c1.CenterX = p1.Results[i].GetPose().TranslationX;
  c1.CenterY = p1.Results[i].GetPose().TranslationY;
  c1.Radius = 10;
  cm.Region = c1;
  cm.Run();//判断是否合格

  if(cm.Result.ResultOfBestMatch.Color.Name == "NG")
  {
    count_ng++;
    labels[i] = new CogGraphicLabel();
    labels[i].SetXYText(c1.CenterX, c1.CenterY, "NG");
  }
  else
  {
    count_ok++;
    labels[i] = new CogGraphicLabel();
    labels[i].SetXYText(c1.CenterX, c1.CenterY, "OK");
  }
  col.Add(labels[i]);
}
if(count_ok == 15)
{
  label.SetXYText(200, 100, "合格");
}
else
{
  label.Color = CogColorConstants.Red;
  label.SetXYText(200, 100, "缺失:" + (15 - count_ok - count_ng) + " NG:" + count_ng);
}
col.Add(label);

//最后输出显示到这个页面上

foreach(ICogGraphic item in col)
    {
      mToolBlock.AddGraphicToRunRecord(item, lastRecord, "CogImageConvertTool1.InputImage", "");
    }

完整脚本代码：

#region namespace imports
using System;
using System.Collections;
using System.Drawing;
using System.IO;
using System.Windows.Forms;
using Cognex.VisionPro;
using Cognex.VisionPro.ToolBlock;
using Cognex.VisionPro3D;
using Cognex.VisionPro.ImageProcessing;
using Cognex.VisionPro.PMAlign;
using Cognex.VisionPro.ColorMatch;
#endregionpublic class CogToolBlockAdvancedScript : CogToolBlockAdvancedScriptBase
{#region Private Member Variablesprivate Cognex.VisionPro.ToolBlock.CogToolBlock mToolBlock;#endregionCogGraphicCollection col = new CogGraphicCollection();CogGraphicLabel label = new CogGraphicLabel();CogGraphicLabel[] labels = new CogGraphicLabel[15];/// <summary>/// Called when the parent tool is run./// Add code here to customize or replace the normal run behavior./// </summary>/// <param name="message">Sets the Message in the tool's RunStatus.</param>/// <param name="result">Sets the Result in the tool's RunStatus</param>/// <returns>True if the tool should run normally,///          False if GroupRun customizes run behavior</returns>public override bool GroupRun(ref string message, ref CogToolResultConstants result){// To let the execution stop in this script when a debugger is attached, uncomment the following lines.// #if DEBUG// if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();// #endifcol.Clear();// Run each tool using the RunTool functionforeach(ICogTool tool in mToolBlock.Tools)mToolBlock.RunTool(tool, ref message, ref result);CogPMAlignTool p1 = mToolBlock.Tools["CogPMAlignTool1"] as CogPMAlignTool;CogColorMatchTool cm = mToolBlock.Tools["CogColorMatchTool1"] as CogColorMatchTool;int count = p1.Results.Count;int count_ng = 0,count_ok=0;for(int i = 0;i < count;i++){CogCircle c1 = new CogCircle();c1.CenterX = p1.Results[i].GetPose().TranslationX;c1.CenterY = p1.Results[i].GetPose().TranslationY;c1.Radius = 10;cm.Region = c1;cm.Run();if(cm.Result.ResultOfBestMatch.Color.Name == "NG"){count_ng++;labels[i] = new CogGraphicLabel();labels[i].SetXYText(c1.CenterX, c1.CenterY, "NG");}else {count_ok++;labels[i] = new CogGraphicLabel();labels[i].SetXYText(c1.CenterX, c1.CenterY, "OK");}col.Add(labels[i]);}if(count_ok == 15){label.SetXYText(200, 100, "合格");}else{label.Color = CogColorConstants.Red;label.SetXYText(200, 100, "缺失:" + (15 - count_ok - count_ng) + " NG:" + count_ng);}col.Add(label);return false;}#region When the Current Run Record is Created/// <summary>/// Called when the current record may have changed and is being reconstructed/// </summary>/// <param name="currentRecord">/// The new currentRecord is available to be initialized or customized.</param>public override void ModifyCurrentRunRecord(Cognex.VisionPro.ICogRecord currentRecord){}#endregion#region When the Last Run Record is Created/// <summary>/// Called when the last run record may have changed and is being reconstructed/// </summary>/// <param name="lastRecord">/// The new last run record is available to be initialized or customized.</param>public override void ModifyLastRunRecord(Cognex.VisionPro.ICogRecord lastRecord){foreach(ICogGraphic item in col){mToolBlock.AddGraphicToRunRecord(item, lastRecord, "CogImageConvertTool1.InputImage", "");}}#endregion#region When the Script is Initialized/// <summary>/// Perform any initialization required by your script here/// </summary>/// <param name="host">The host tool</param>public override void Initialize(Cognex.VisionPro.ToolGroup.CogToolGroup host){// DO NOT REMOVE - Call the base class implementation first - DO NOT REMOVEbase.Initialize(host);// Store a local copy of the script hostthis.mToolBlock = ((Cognex.VisionPro.ToolBlock.CogToolBlock)(host));}#endregion}

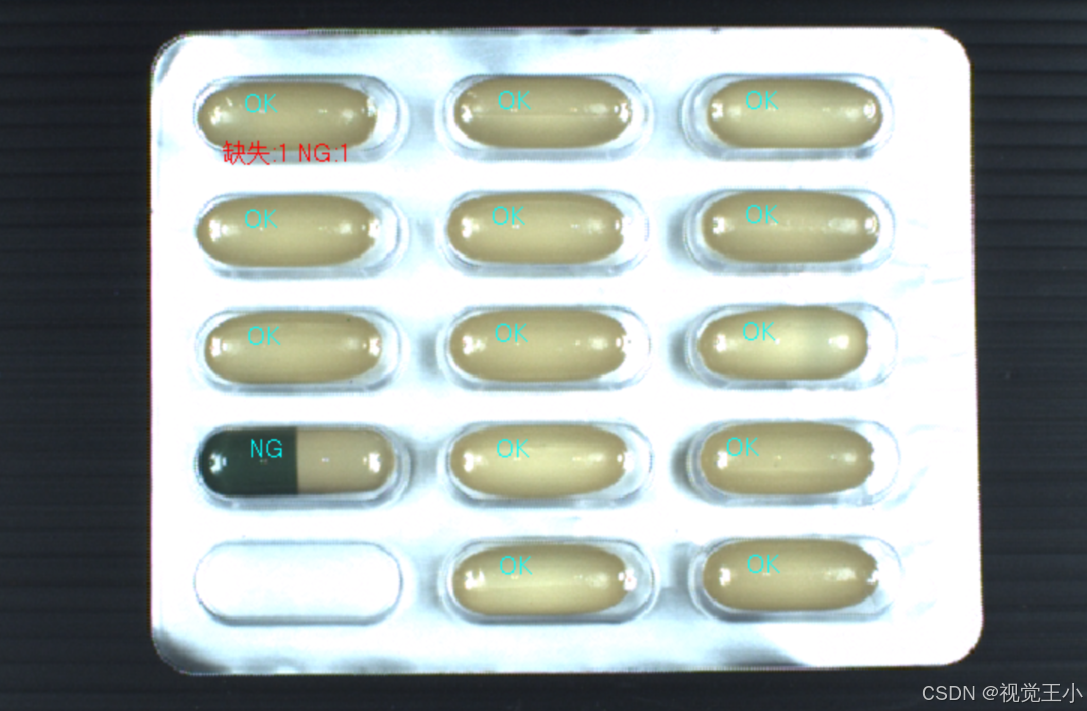

3.最终实现效果
