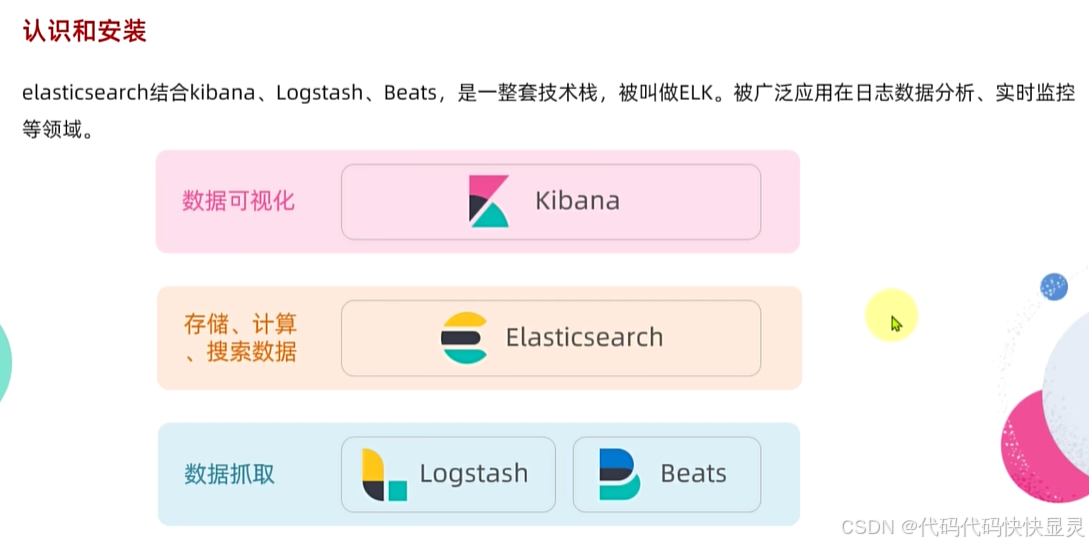

初识ES
需要下载Kibana和Elasticsearch。 Kibana一个开发控制台(DevTools),在其中对Elasticsearch的Restful的API接口提供了语法提示。注意在下载的时候两者版本需要保持一致并且位于同一网络下才能使用容器名来访问。

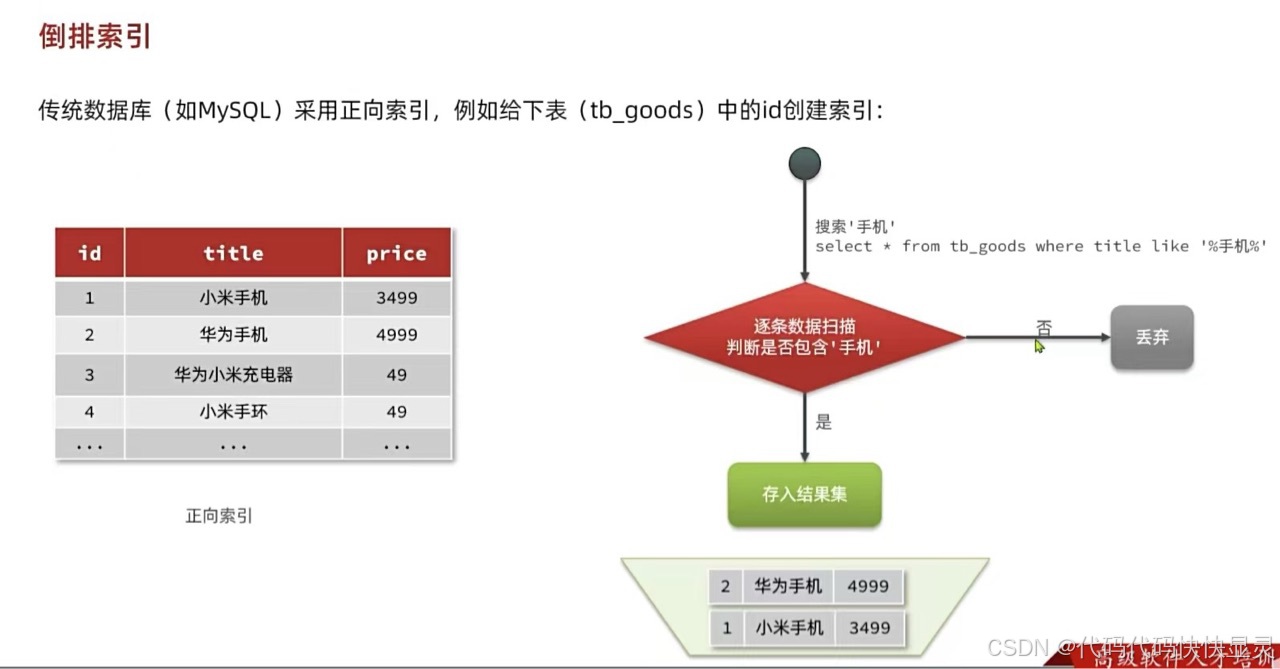

倒排索引
正向索引根据id精确匹配时,可以走索引,查询效率较高。而当搜索条件为模糊匹配时,由于索引无法生效,导致从索引查询退化为全表扫描,效率很差。
因此,正向索引适合于根据索引字段的精确搜索,不适合基于部分词条的模糊匹配。
而倒排索引恰好解决的就是根据部分词条模糊匹配的问题。
倒排索引中有两个非常重要的概念:
-
文档(
Document
):用来搜索的数据,其中的每一条数据就是一个文档。例如一个网页、一个商品信息 -
词条(
Term
):对文档数据或用户搜索数据,利用某种算法(例如IK分词器)分词,得到的具备含义的词语就是词条。例如:我是中国人,就可以分为:我、是、中国人、中国、国人这样的几个词条
正向索引是最传统的,根据id索引的方式。但根据词条查询时,必须先逐条获取每个文档,然后判断文档中是否包含所需要的词条,是根据文档找词条的过程。
而倒排索引则相反,是先找到用户要搜索的词条,根据词条得到保护词条的文档的id,然后根据id获取文档。是根据词条找文档的过程。
举例区别
正向索引(Forward Index)
假设我们有以下 3 篇文档:
- 文档 1(ID: 101):
今天天气很好
- 文档 2(ID: 102):
今天去公园玩
- 文档 3(ID: 103):
公园里有很多人
正向索引存储方式:
{"101": ["今天", "天气", "很好"],"102": ["今天", "去", "公园", "玩"],"103": ["公园", "里", "有", "很多", "人"]
}
如果用户要搜索 “公园”,系统需要遍历所有文档,检查其中是否包含“公园”。

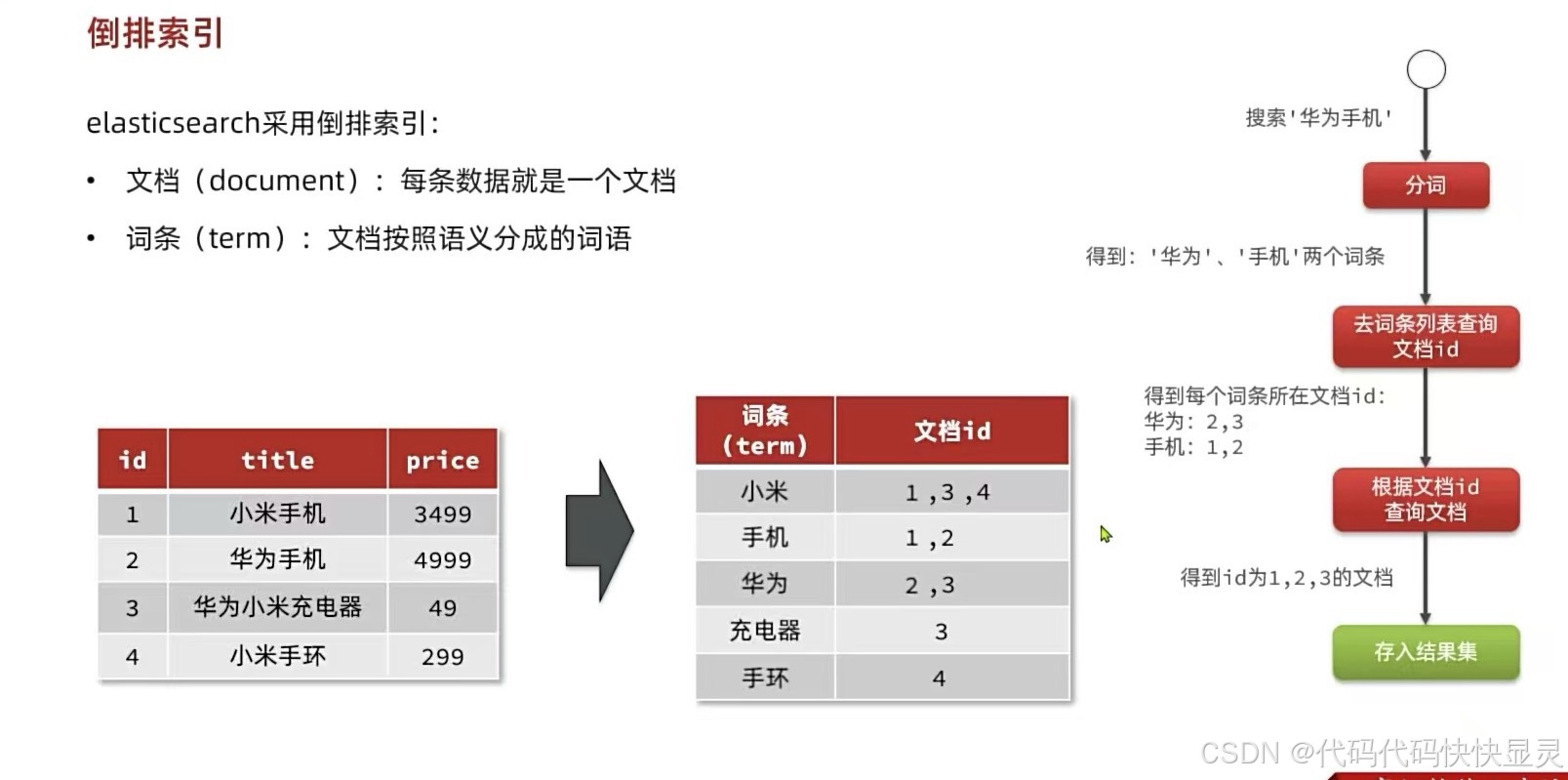

倒排索引(Inverted Index)
倒排索引的存储方式是 先将文档分成词条然后记录每个词在哪些文档中出现,比如:
{"今天": [101, 102],"天气": [101],"很好": [101],"去": [102],"公园": [102, 103],"玩": [102],"里": [103],"有": [103],"很多": [103],"人": [103]
}
如果用户要搜索 “公园”,系统可以直接找到包含“公园”的文档 ID(102
和 103
),然后快速获取对应的文档,而不需要遍历所有文档。
对比
索引类型 | 存储方式 | 查询方式 |
---|---|---|
正向索引 | 文档 ID → 词条列表 | 遍历所有文档,判断是否包含目标词 |
倒排索引 | 词条 → 相关文档 ID 列表 | 直接查找目标词,快速定位相关文档 |
倒排索引大大提高了搜索效率,因此现代搜索引擎(如 Elasticsearch、Lucene)都采用 倒排索引 来优化查询速度。

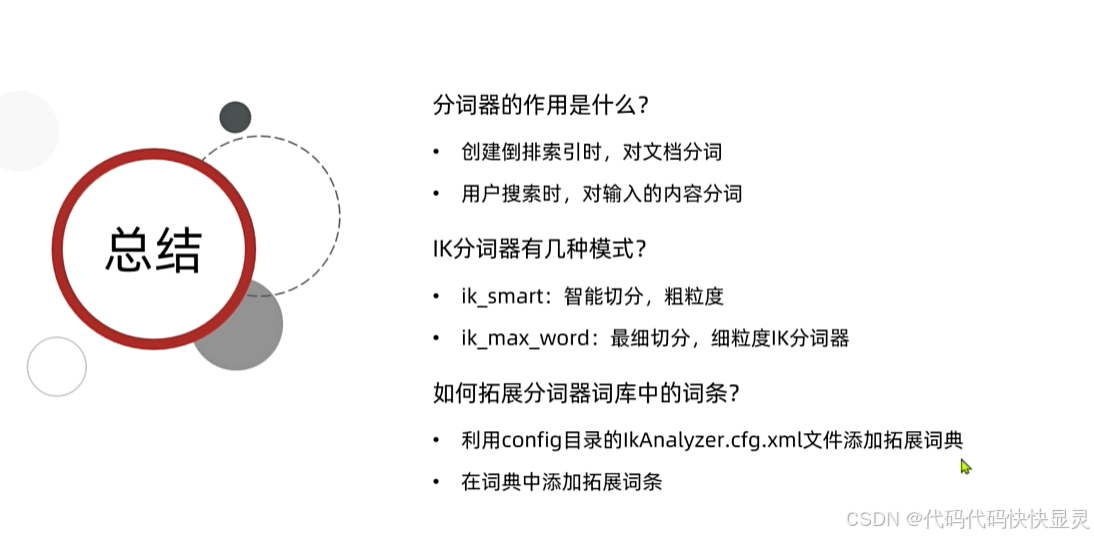

IK分词器
Elasticsearch的关键就是倒排索引,而倒排索引依赖于对文档内容的分词,而分词则需要高效、精准的分词算法,IK分词器就是这样一个中文分词算法。
注意,在虚拟机当中直接更改没有效果(可能是因为保存不了) ,需要我们在Windows当中编辑之后传入其中。
在IKAnalyzer.cfg.xml当中进行扩展词汇,ext.dic是扩展词汇。
具体可以查看黑马 day08-Elasticsearch - 飞书云文档 (feishu.cn)1.4节

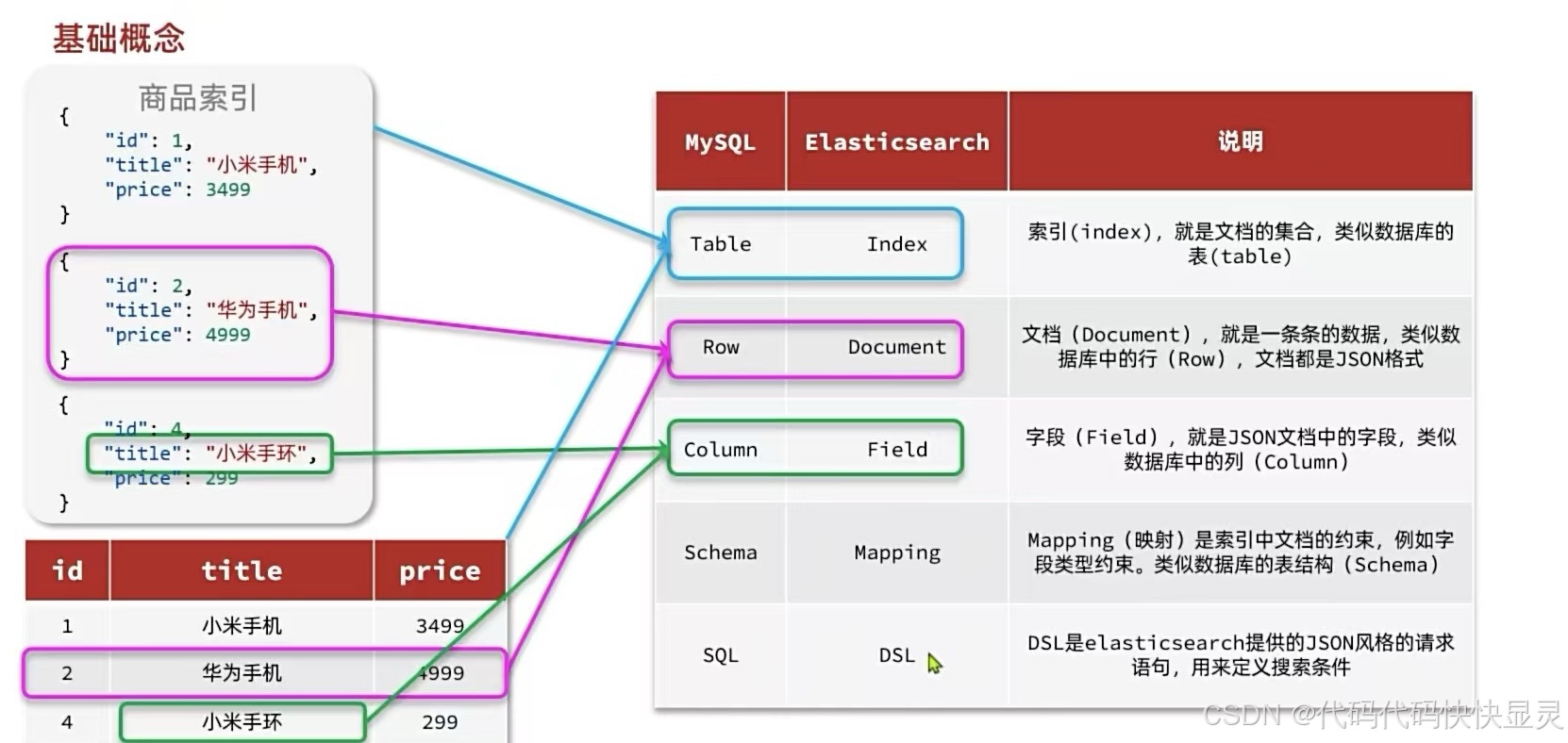

基本概念
elasticsearch是面向文档(Document)存储的,可以是数据库中的一条商品数据,一个订单信息。文档数据会被序列化为json
格式后存储在elasticsearch
中:
我们要将类型相同的文档集中在一起管理,称为索引(Index)。
索引库
mapping映射
Mapping 的作用
-
字段类型定义:指定每个字段的数据类型(如
text
,keyword
,integer
,date
等)。 -
分词控制:定义全文搜索字段的分词器(ik_smart)和搜索时的分词策略。
-
索引优化:控制字段是否被索引、是否存储原始值等。
-
数据格式验证:防止不符合格式的数据被写入索引。
核心字段属性
1. 常见数据类型
类型 | 说明 |
---|---|
text | 全文搜索字段,会被分词(如文章内容)。 |
keyword | 精确值匹配或聚合(如状态标签、分类)。 |
long , integer , short , byte | 整数类型。 |
double , float , half_float | 浮点数类型。 |
boolean | 布尔值。 |
date | 日期类型(支持多种格式,如 yyyy-MM-dd )。 |
2. 关键参数
参数 | 说明 |
---|---|
type | 字段类型(如 text , keyword )。 |
index | 是否被索引(true /false ),关闭后无法搜索。 |
analyzer | 指定分词器(如 standard , ik_smart )。 |
search_analyzer | 搜索时的分词器(默认与 analyzer 一致)。 |
fields | 多字段特性(如 text 字段添加 keyword 子字段)。 |
format | 日期格式(如 yyyy-MM-dd HH:mm:ss )。 |
查看索引的 Mapping
GET /my_index/_mapping
更新 Mapping(只能添加新字段)
PUT /my_index/_mapping
{"properties": {"new_field": { "type": "keyword" }}
}
修改 Mapping 的限制
-
已有字段的类型不可修改(需重建索引)。
-
可新增字段,但需通过
PUT /index/_mapping
更新映射。 -
若需修改现有字段,需通过
Reindex API
迁移数据到新索引。

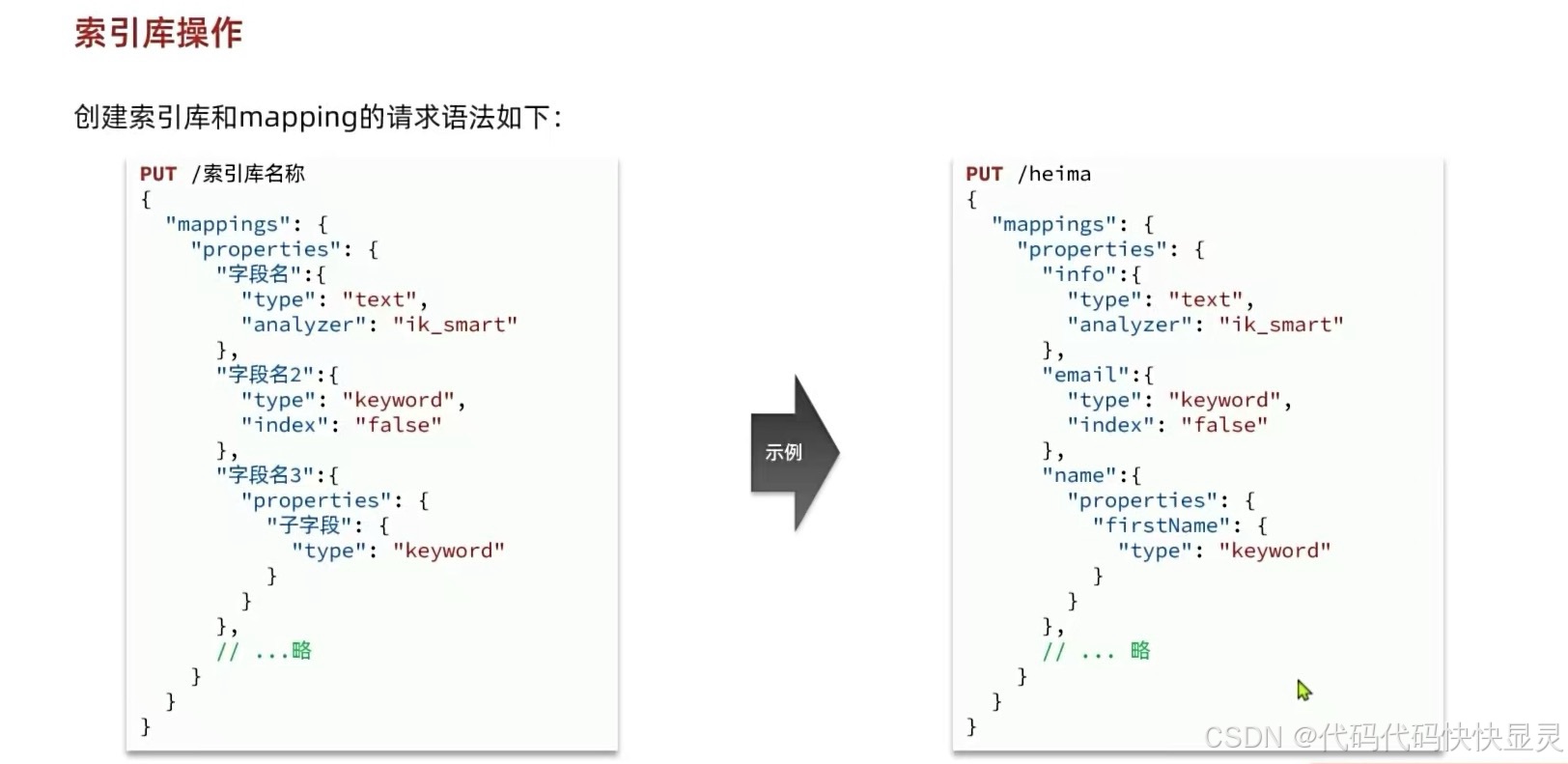

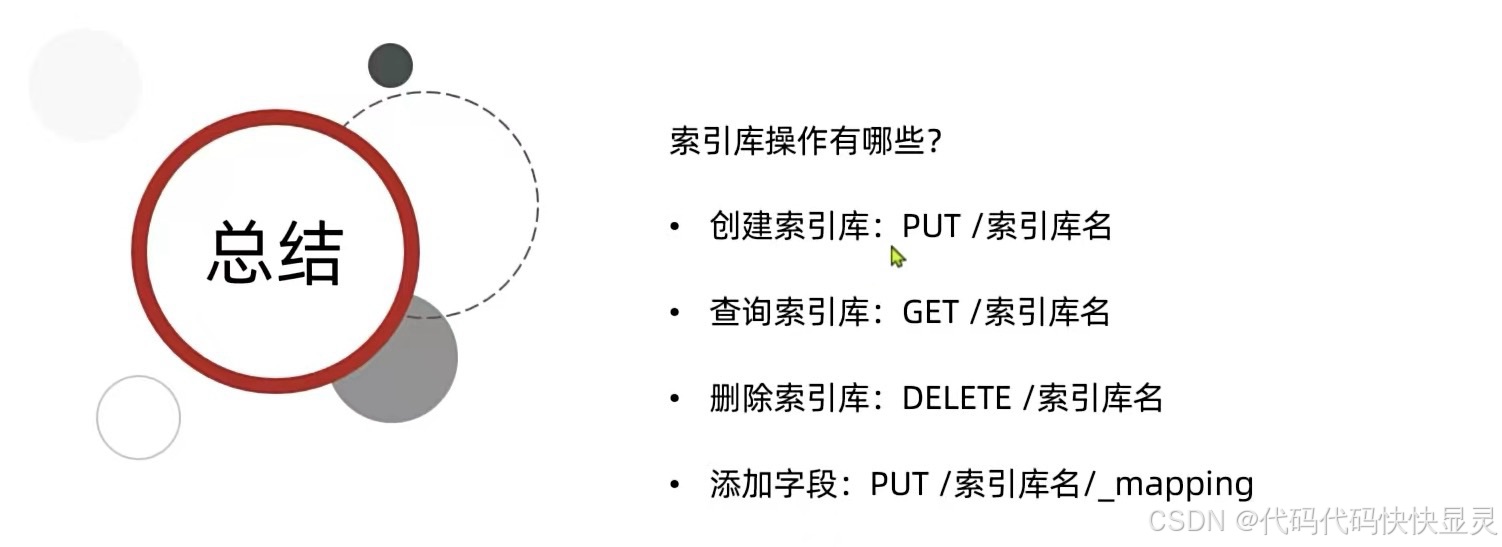

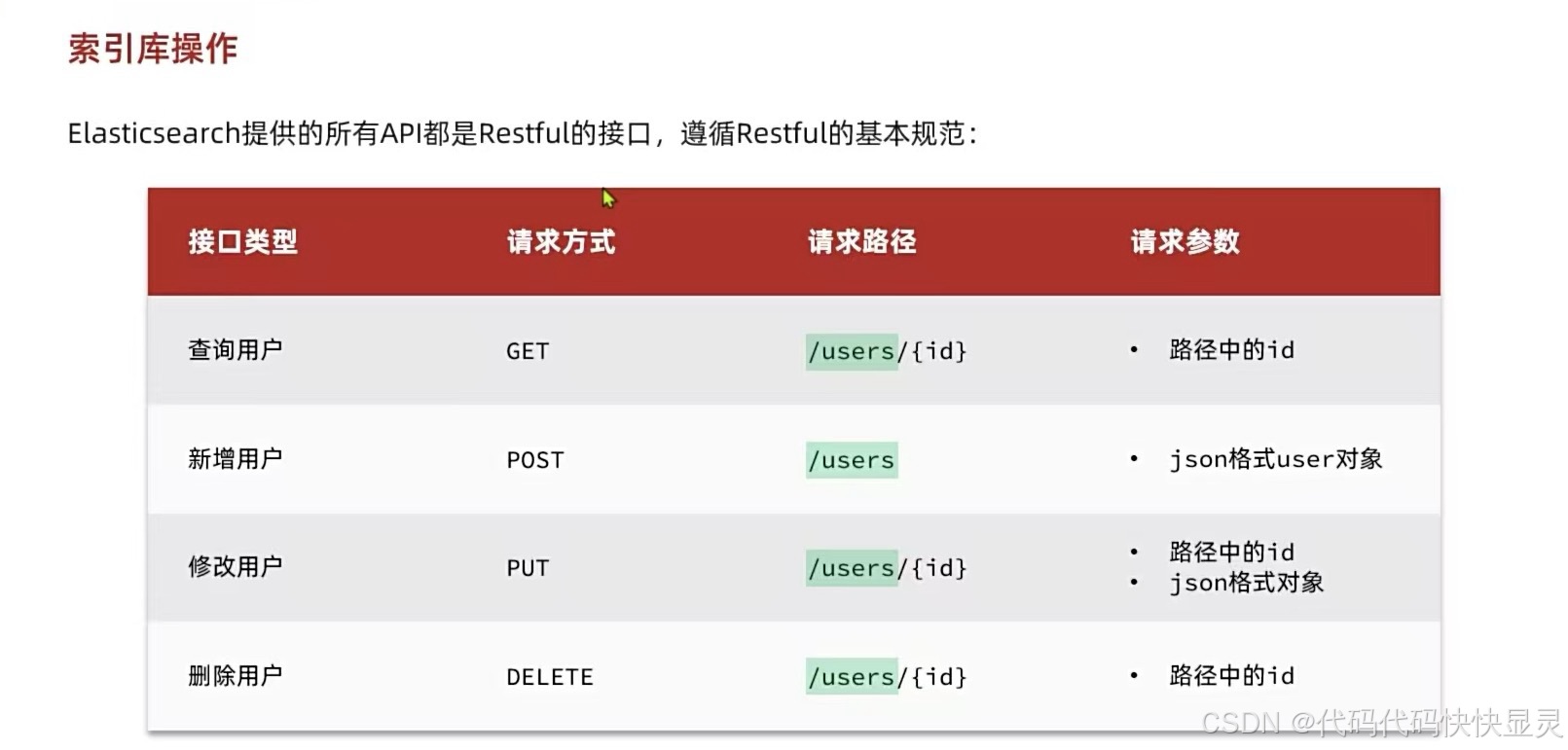

索引库操作
定义结构部分:
{"mappings": {"properties": {"id": { "type": "integer" }, "name": { "type": "keyword" }, "age": { "type": "integer" }, "bio": { "type": "text" } }}
}
示例:
创建索引库:
PUT /orders
{"mappings": {"properties": {"items": {"type": "nested", // 保留数组内对象的独立性"properties": {"product": { "type": "keyword" },"quantity": { "type": "integer" }}}}}
}
嵌套类型
解决对象数组的独立性问题,保留子对象的关联性:
PUT /my_index
{"mappings": {"properties": {"title": {"type": "text","analyzer": "ik_max_word", // 使用 IK 分词器"fields": {"keyword": { "type": "keyword" } // 子字段用于精确匹配}},"year": { "type": "integer" },"published": { "type": "boolean" }}}
}

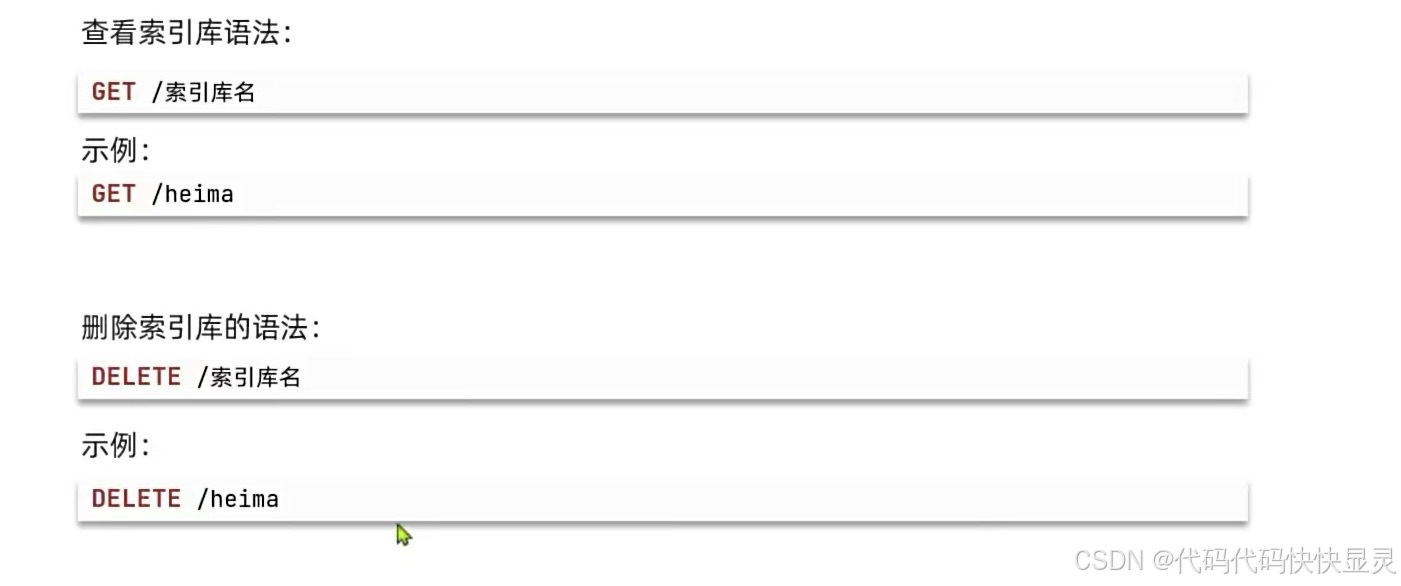

查看索引信息
GET /my_index
删除索引
DELETE /my_index

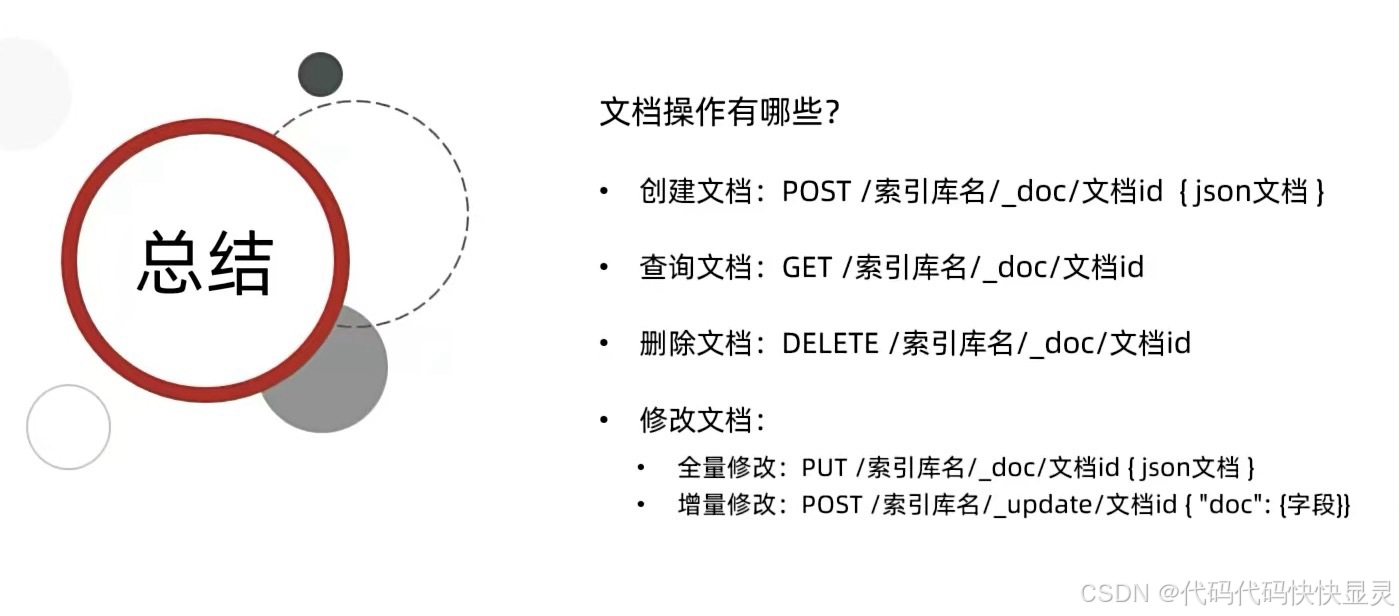

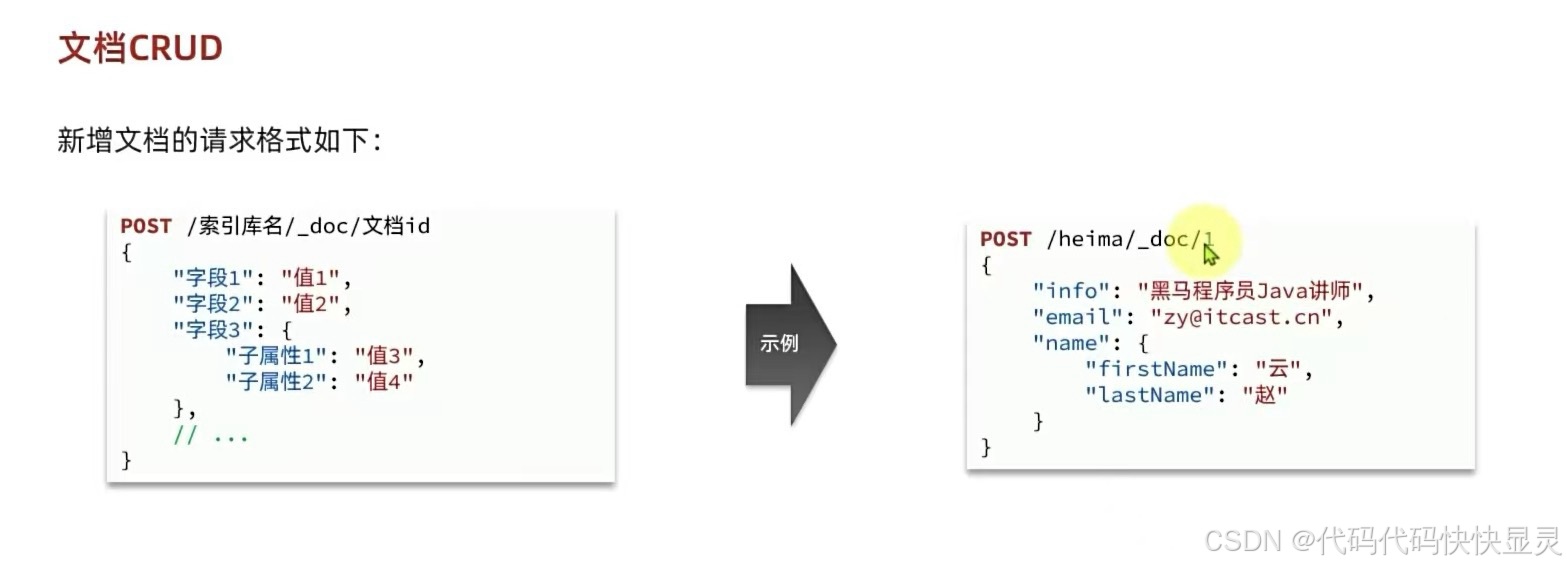

文档操作
POST /my_index/_doc/1
{"title": "Elasticsearch入门教程","price": 49.9,"create_time": "2023-10-01 10:00:00"
}

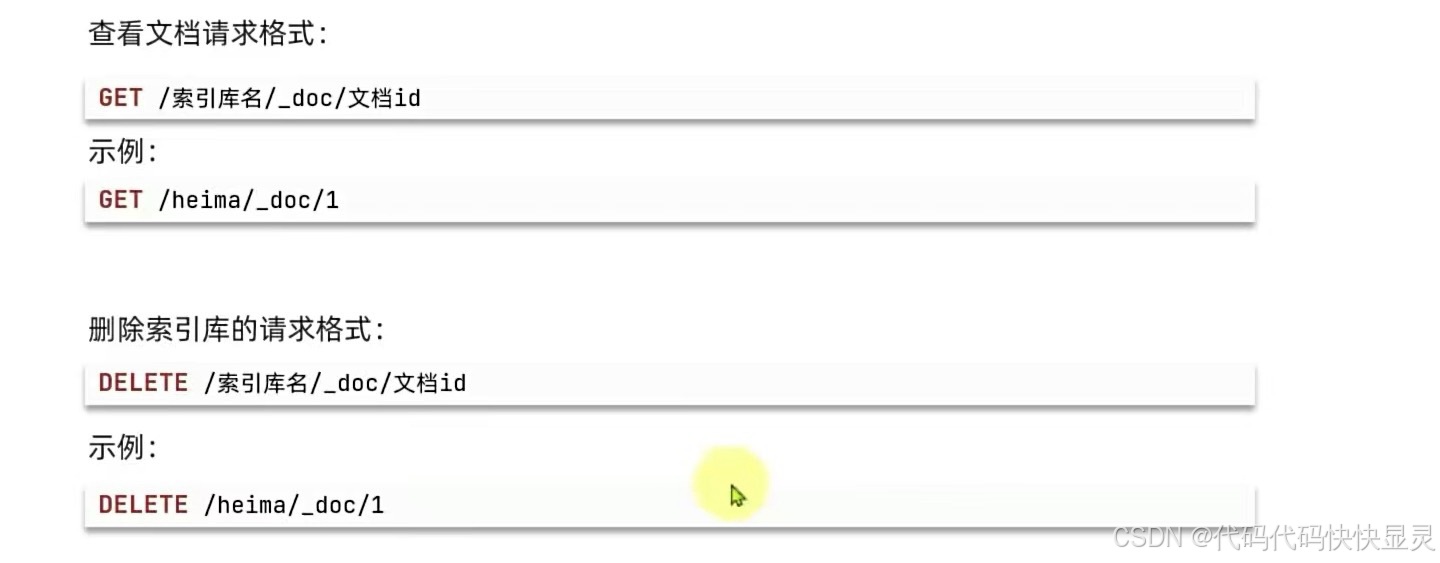

查询文档
GET /my_index/_doc/1
删除文档
DELETE /my_index/_doc/1

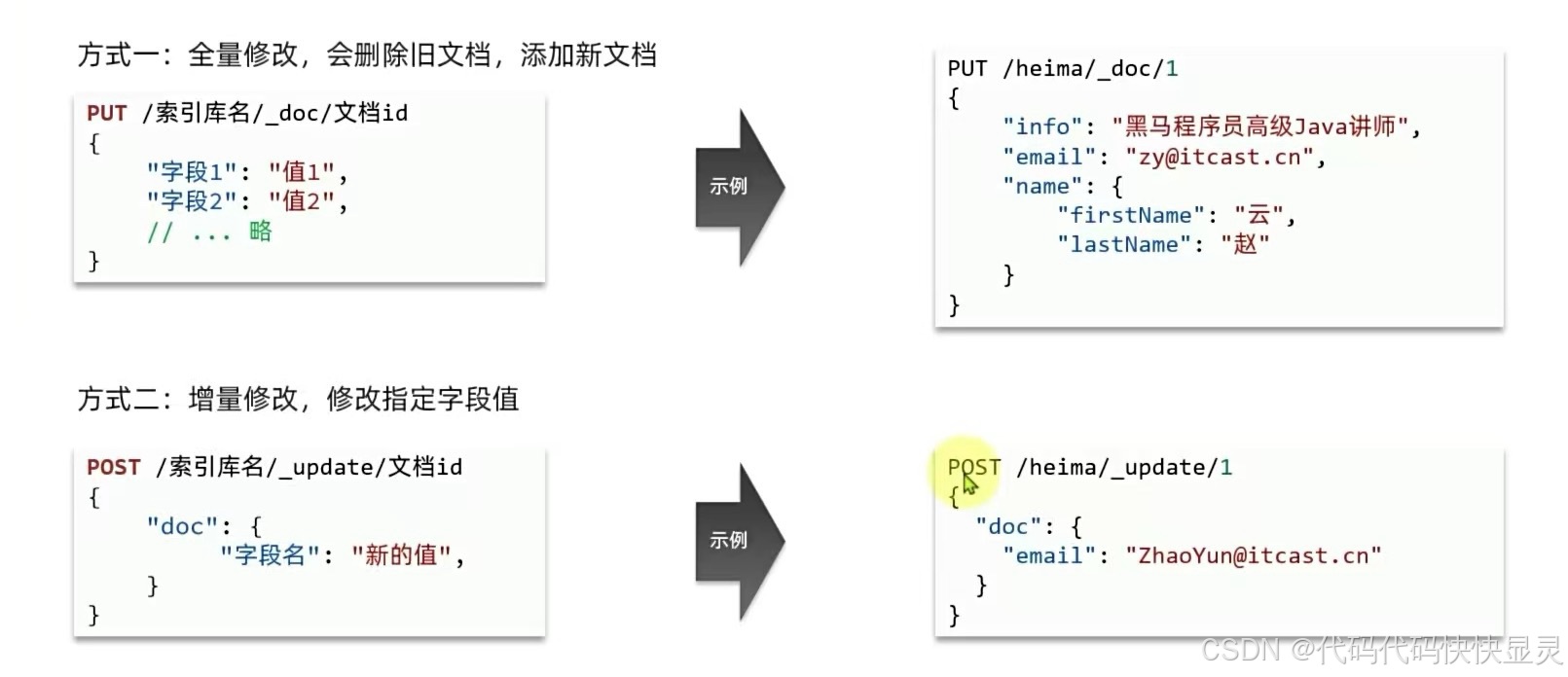

覆盖更新
PUT /my_index/_doc/1
{"title": "Elasticsearch进阶教程","price": 59.9
}
局部更新(使用 _update
)
POST /my_index/_update/1
{"doc": {"price": 69.9}
}

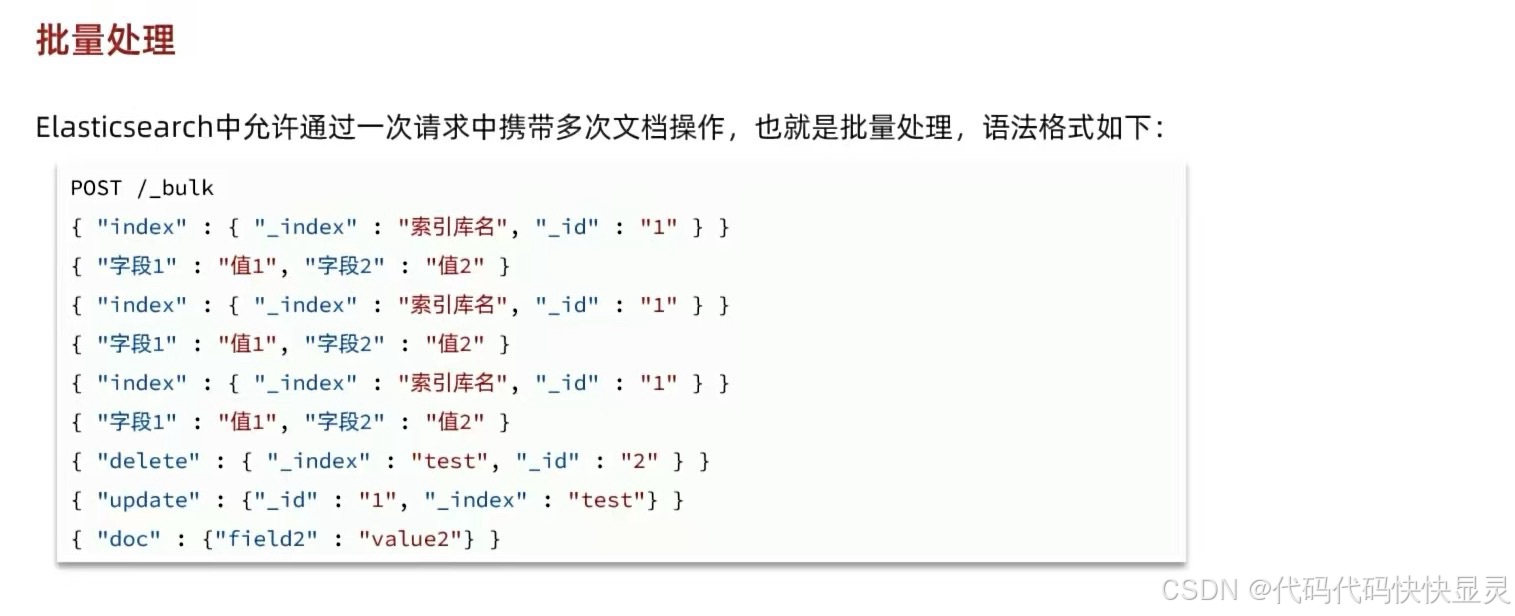

批量处理
批量写入文档
POST /my_index/_bulk
{ "index": { "_id": 2 } }
{ "title": "Java编程思想", "price": 89.9 }
{ "index": { "_id": 3 } }
{ "title": "Python数据分析", "price": 55.0 }
批量删除
POST /my_index/_bulk
{ "delete": { "_id": 2 } }
{ "delete": { "_id": 3 } }
综合使用
如果你希望控制字段类型、分词方式等,建议先创建索引,然后再添加文档。
示例:手动创建索引
PUT my_index
{"mappings": {"properties": {"name": { "type": "keyword" }, "age": { "type": "integer" }, "bio": { "type": "text", "analyzer": "standard" } }}
}
然后插入数据:
POST my_index/_doc/1
{"name": "Alice","age": 25,"bio": "Loves hiking and reading"
}
JavaRestClient

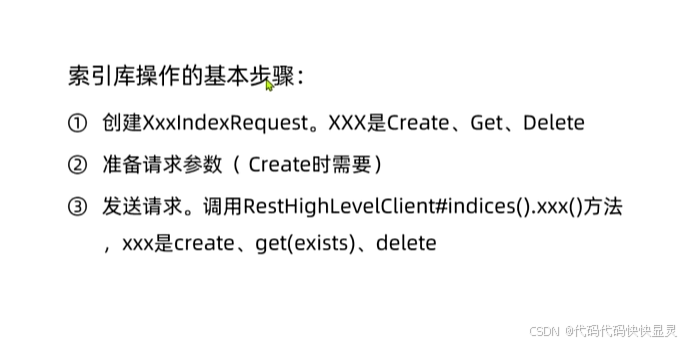

索引库操作
RestHighLevelClient
-
作用: Elasticsearch 官方提供的高级 REST 客户端,用于与 Elasticsearch 集群进行交互(注意:该客户端在 Elasticsearch 7.15 后已废弃,推荐改用新 Java API Client,但现有代码仍可运行)。
-
初始化: 在
setUp()
方法中创建,连接到指定 Elasticsearch 节点的地址192.168.88.130:9200
。
JUnit 生命周期方法
-
@BeforeEach void setUp()
: 在每个测试方法执行前初始化客户端,确保测试独立性。 -
@AfterEach void tearDown()
: 在每个测试方法执行后关闭客户端,释放资源,防止内存泄漏。
public class ElasticIndexTest {private RestHighLevelClient client;@BeforeEachvoid setUp() {client = new RestHighLevelClient(RestClient.builder(HttpHost.create("192.168.88.130:9200")));}@AfterEachvoid tearDown() throws IOException {if (client != null) {client.close();}}
}

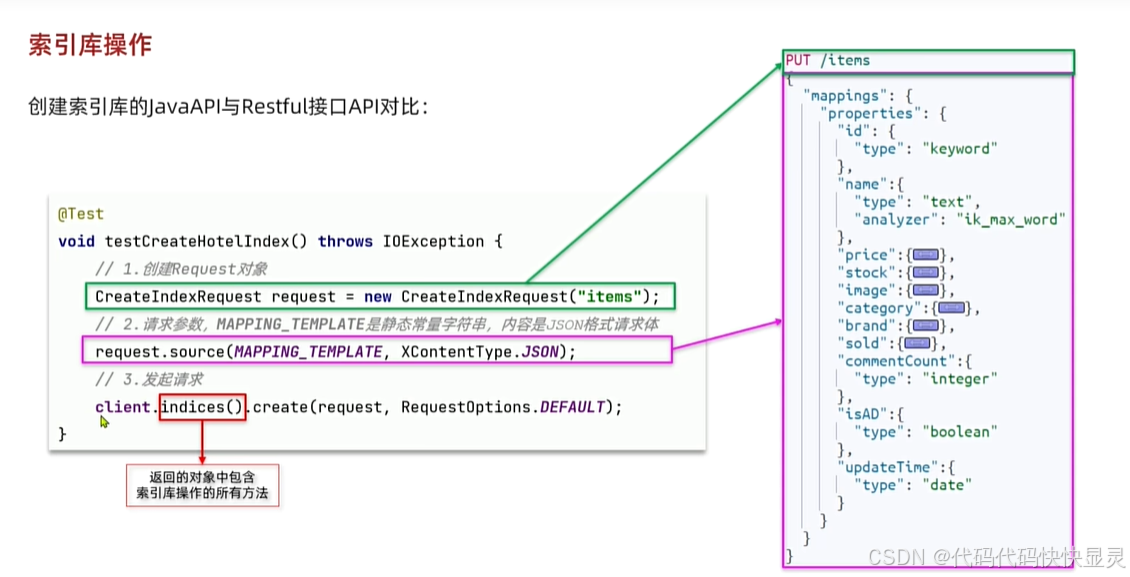

// 增加索引库
@Testvoid testCreateIndex() throws IOException {// 先创建Request对象CreateIndexRequest request = new CreateIndexRequest("items");// 准备请求参数request.source(MAPPING_TEMPLATE, XContentType.JSON);// 发送请求client.indices().create(request, RequestOptions.DEFAULT);}
// 获取索引库@Testvoid testGetIndex() throws IOException {// 先创建Request对象GetIndexRequest request = new GetIndexRequest("items");// 发送请求
// client.indices().get(request,RequestOptions.DEFAULT);boolean exists = client.indices().exists(request, RequestOptions.DEFAULT);System.out.println("exists = "+ exists);}
// 删除索引库@Testvoid testDelIndex() throws IOException {// 先创建Request对象DeleteIndexRequest request = new DeleteIndexRequest("items");// 发送请求
// client.indices().get(request,RequestOptions.DEFAULT);client.indices().delete(request,RequestOptions.DEFAULT);}
8.0版本
RestHighLevelClient
已废弃,推荐使用新 Java API Client。
// 替换依赖(pom.xml)
<dependency><groupId>co.elastic.clients</groupId><artifactId>elasticsearch-java</artifactId><version>8.12.0</version>
</dependency>// 新客户端初始化
RestClient restClient = RestClient.builder(HttpHost.create("192.168.88.130:9200")
).build();
ElasticsearchClient client = new ElasticsearchClient(new RestClientTransport(restClient, new JacksonJsonpMapper())
);
RestClient restClient = RestClient.builder(HttpHost.create("localhost:9200")
).build();
ElasticsearchClient client = new ElasticsearchClient(new RestClientTransport(restClient, new JacksonJsonpMapper())
);IndexRequest request = IndexRequest.of(b -> b.index("test_index").id("1").document(Map.of("field", "value"))
);IndexResponse response = client.index(request);

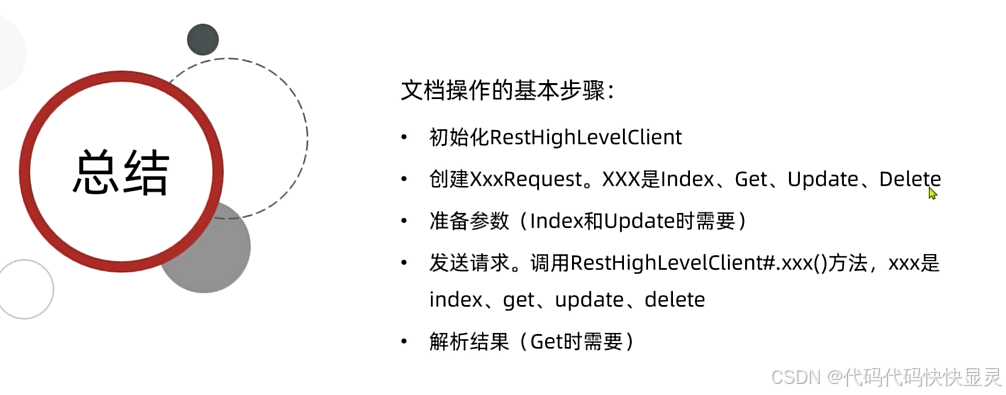

文档操作

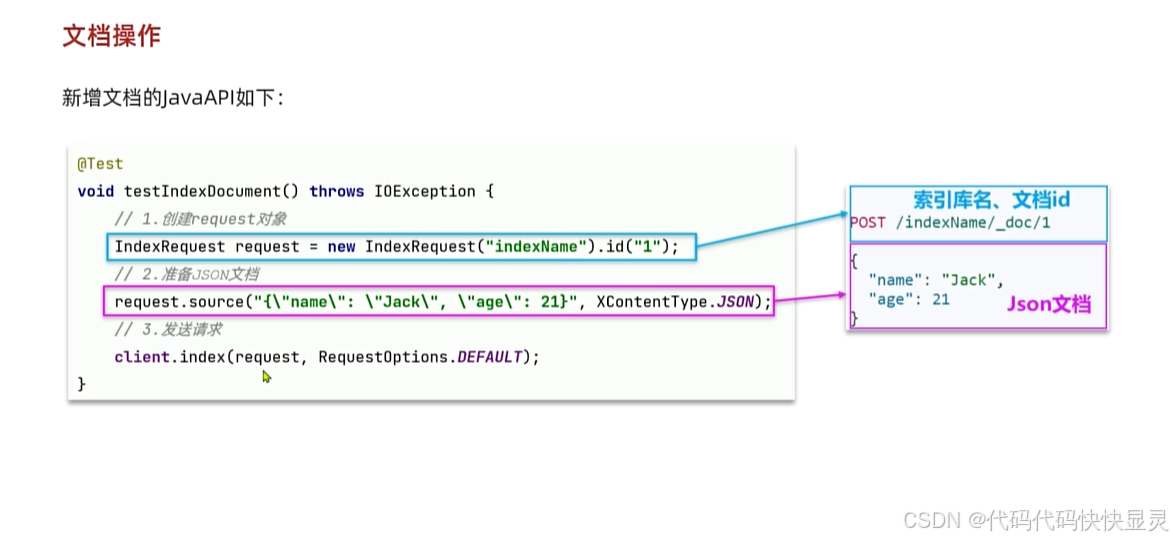

/*** 新增操作 当id存在时就是修改* @throws IOException*/@Testvoid testIndexDoc() throws IOException {// 准备文档数据// 从数据库查询Item item = itemService.getById(1013324L);
// item.setPrice(29900);// 进行转化ItemDoc itemDoc = BeanUtil.copyProperties(item, ItemDoc.class);// 准备RequestIndexRequest request = new IndexRequest("items").id(item.getId().toString());// 准备请求参数request.source(JSONUtil.toJsonStr(itemDoc),XContentType.JSON);// 发送请求client.index(request,RequestOptions.DEFAULT);}

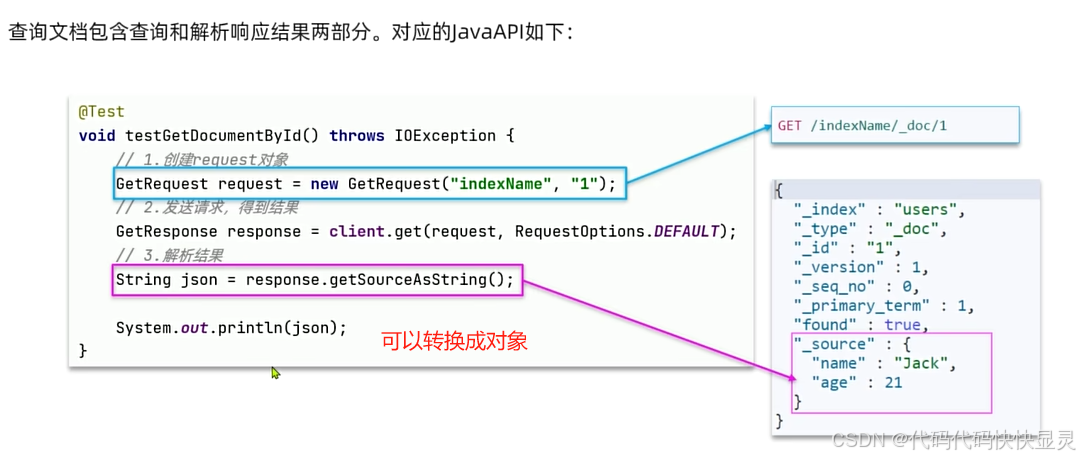

/*** 获取* @throws IOException*/@Testvoid testGetDoc() throws IOException {// 准备RequestGetRequest request = new GetRequest("items").id("1013324");// 发送请求GetResponse response = client.get(request, RequestOptions.DEFAULT);String json = response.getSourceAsString();ItemDoc doc = JSONUtil.toBean(json, ItemDoc.class);System.out.println("doc = " + doc);}
删除:
/*** 删除* @throws IOException*/@Testvoid testDelDoc() throws IOException {// 准备RequestDeleteRequest request = new DeleteRequest("items").id("1013324");// 发送请求client.delete(request,RequestOptions.DEFAULT);}

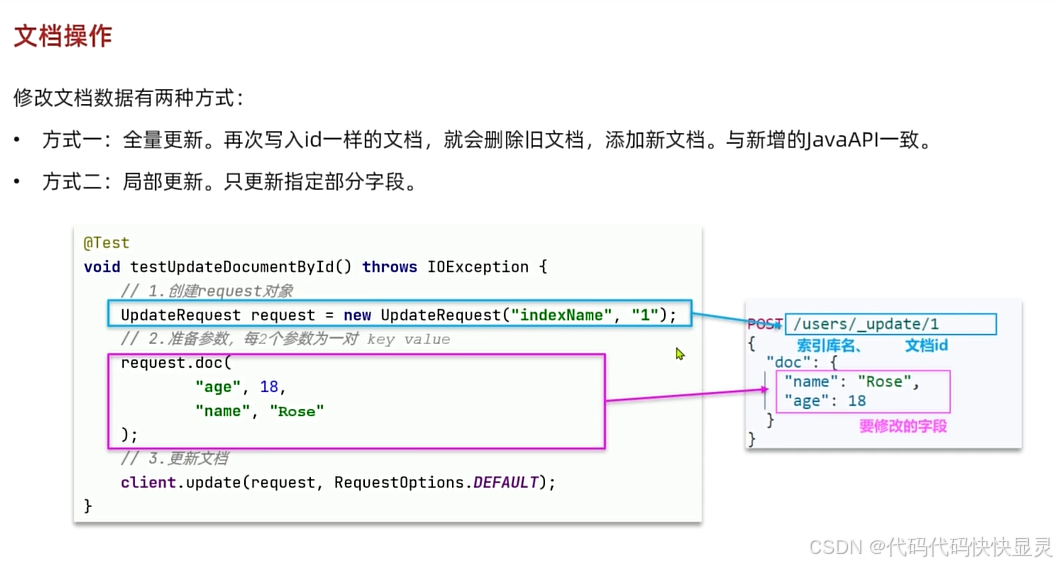

@Testvoid testUpdateDoc() throws IOException {// 准备RequestUpdateRequest request = new UpdateRequest("items","1013324");// 参数request.doc("price",29900);// 发送请求client.update(request,RequestOptions.DEFAULT);}@Testvoid testBulkDoc() throws IOException {// 准备文档数据// 从数据库查询int pageNo = 1;int pageSize = 500;while(true) {Page<Item> page = itemService.lambdaQuery().eq(Item::getStatus, 1).page(Page.of(pageNo, pageSize));List<Item> records = page.getRecords();// 未查到if (records == null || records.isEmpty()) {return;}// 准备RequestBulkRequest request = new BulkRequest();// 准备请求参数for (Item item : records) {// 进行转化ItemDoc doc = BeanUtil.copyProperties(item, ItemDoc.class);request.add(new IndexRequest("items").id(doc.getId()).source(JSONUtil.toJsonStr(doc), XContentType.JSON));}
// request.add(new DeleteRequest("items").id("1"));// 发送请求client.bulk(request, RequestOptions.DEFAULT);// 翻页pageNo++;}}

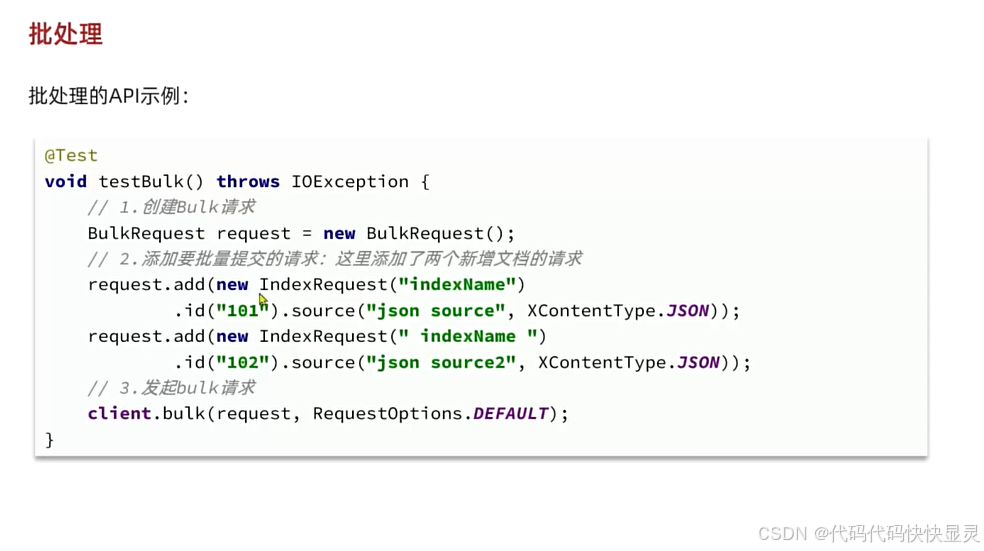

批量处理
Elasticsearch Java API 查询操作 请求方式总结
查询类型 | API 方法 | 请求方式 | 返回类型 |
---|---|---|---|
匹配所有 | QueryBuilders.matchAllQuery() | request.source().query(QueryBuilders.matchAllQuery()); | SearchResponse |
精确查询 | QueryBuilders.termQuery() | request.source().query(QueryBuilders.termQuery("field", "value")); | SearchResponse |
范围查询 | QueryBuilders.rangeQuery() | request.source().query(QueryBuilders.rangeQuery("field").gte(10).lte(100)); | SearchResponse |
多条件查询 | QueryBuilders.boolQuery() | request.source().query(QueryBuilders.boolQuery().must(...).filter(...)); | SearchResponse |
分页查询 | .from(...).size(...) | request.source().query(...).from(0).size(10); | SearchResponse |
排序查询 | .sort(...) | request.source().query(...).sort("field", SortOrder.ASC); | SearchResponse |
高亮查询 | HighlightBuilder | request.source().query(...).highlighter(new HighlightBuilder().field("field")); | SearchResponse |
聚合查询 | AggregationBuilders.terms() | request.source().aggregation(AggregationBuilders.terms("aggName").field("field")); | SearchResponse |
